As energy costs rise and temperatures climb, traditional air conditioning becomes less practical. Evaporative cooling pads offer an eco-friendly alternative. These pads cool air through water evaporation. In this article, you will learn how these systems work, why they are effective, and how to maintain them for long-term performance.
● Evaporative cooling pads use the natural process of water evaporation to reduce air temperature efficiently.
● Modern rigid media is made from cross-fluted cellulose paper treated with resins for structural strength.
● These systems save energy and improve indoor air quality compared to conventional AC units.
● Proper maintenance, including dry-out cycles and water quality control, prolongs the pad's lifespan.

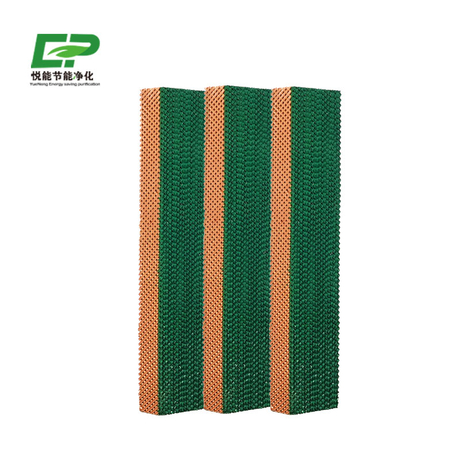

Modern cooling pads are engineered rather than simple filters. They are made from cellulose paper sheets with alternating coarse and fine flutes. These sheets are pressed into a cross-fluted design to create a large surface area within a compact space.
To prevent collapse when wet, the cellulose is treated with insoluble resins. These resins provide rigidity, protect against water damage, and extend the pad's life. The structure allows water and air to mix efficiently without blocking airflow.
Note: High-quality resin treatment ensures the pad maintains shape and performance even after years of continuous use.
Evaporative cooling relies on basic physics. Warm, dry air passing through wet channels transfers heat to the water. This energy causes water to evaporate, cooling the air. The air loses sensible heat, while the water absorbs the latent heat of vaporization.
This process is similar to the cooling effect when wind passes over damp skin, turning hot air into cooler, humid air.
Parameter | Impact on Cooling Process |
Air Velocity | Determines contact time between air and wet surfaces |
Relative Humidity | Lower humidity allows faster evaporation |
Surface Area | More surface area increases thermal exchange |
Cellulose pads are standard for general cooling. They distribute water evenly, ensuring consistent temperature reduction.
Plastic media, made from polypropylene or polyethylene, resist chemicals, scaling, and biological growth. They allow more aggressive cleaning but require higher water flow to match cellulose cooling performance.
● Saturation Efficiency: Measures how close the output air temperature is to the wet-bulb temperature.
● Pressure Drop: Resistance to airflow. Thick pads increase efficiency but require stronger fans.
Engineers must balance efficiency and pressure drop for optimal performance.
Early evaporative coolers used wood shavings. These sagged over time, leaving gaps and decaying quickly. Modern resin-bonded pads prevent sagging, maintain airflow, and last much longer.
A water pump draws water from a sump tank to a header pipe at the top of the pad. The header distributes water evenly. Gravity pulls water down through the pad, wetting the entire surface. Unevaporated water returns to the sump for recirculation.

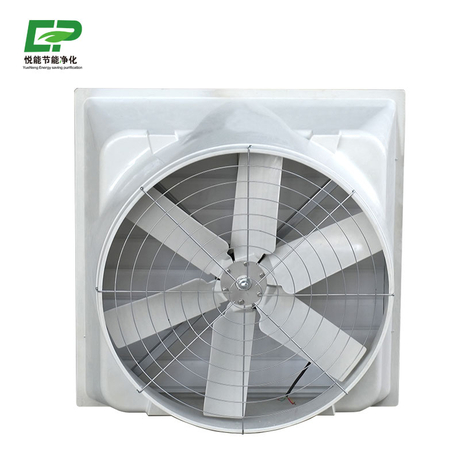

Fans create negative pressure to pull warm air through the wet pad. As air passes, it cools through evaporation. The system maintains a continuous airflow loop to stabilize indoor temperature.
Evaporation leaves behind minerals like calcium and magnesium. Continuous bleed-off flushes part of the water, keeping mineral levels low and preventing scale buildup. Fresh water replaces the drained portion.
Evaporative systems use only a water pump and fans, avoiding power-hungry compressors. Industrial facilities can reduce electricity use by up to 80%. Lower energy demand also decreases monthly utility costs.
These systems use water instead of chemical refrigerants, reducing environmental impact. Lower power consumption also decreases carbon emissions.
Wet channels act as air filters. Dust, pollen, and other particles get trapped and washed away into the sump. This improves indoor air quality without high-resistance filters.
Data centers use evaporative media to pre-cool air entering chillers, reducing compressor workloads.
Cooling pads regulate greenhouse temperatures and add humidity, preventing plant stress.
Pads keep animals cool in hot conditions, maintaining production and health. Even airflow is crucial to avoid hot spots.
Common designs are 45/45 and 60/30 angles. These control water drainage, air resistance, and cleaning efficiency.
● 4-inch pads: Suitable for residential or small greenhouse systems. Lower cost, moderate efficiency.
● 6-inch pads: Standard for large industrial or agricultural setups. Higher cooling efficiency, requires stronger fans.
The intake face faces sunlight, algae, and mechanical wear. Protective coatings prevent degradation and extend pad life.
Evaporative cooling pads are efficient and sustainable. Selecting the right pad and maintaining it ensures years of reliable performance. Systems like those from Ntyueneng optimize efficiency while lowering energy costs.
Q: What is an evaporative cooling pad made of?
A: Cross-fluted cellulose paper treated with resins for rigidity and water resistance.
Q: How does it cool air?
A: Warm air loses heat as water evaporates inside the pad.
Q: Why use it over traditional AC?
A: It saves energy, is eco-friendly, and avoids chemical refrigerants.
Q: How do you clean it?
A: Flush with fresh water, maintain bleed-off, and control water pH to prevent scaling.
