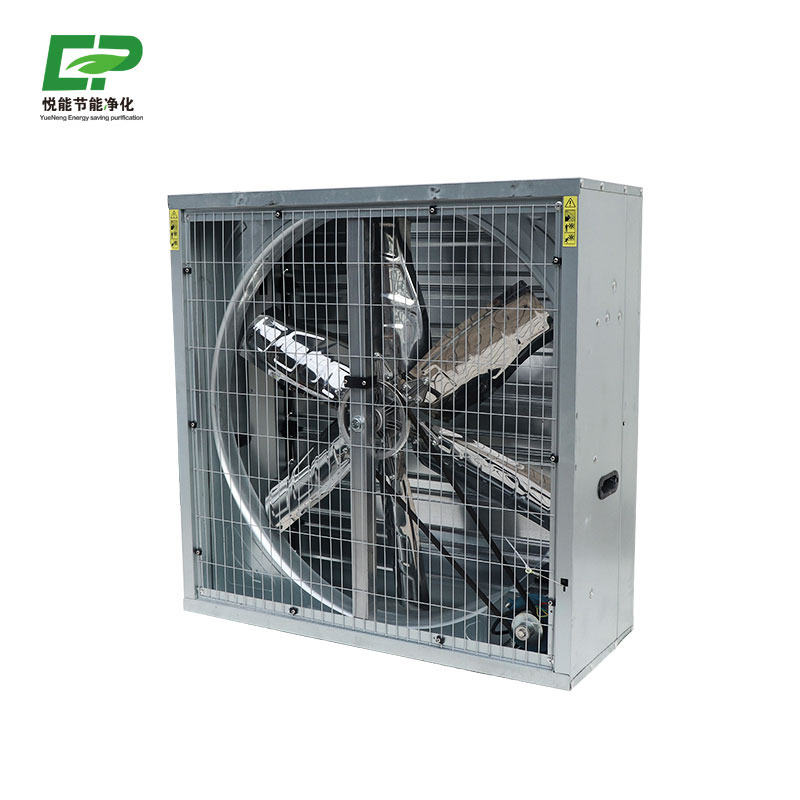

Constructed with a galvanized or aluminized zinc plate frame (with optional 304 stainless steel upgrade), it combines strength, durability, and affordability. Equipped with 6 stainless steel blades that undergo dynamic balance testing, the fan ensures large airflow, low noise, and resistance to deformation. With a low power consumption of only ~0.55 kW and an air volume capacity of 26,000–30,000 m³/h, it provides high efficiency with low operating costs. The automatic louvers open when powered and close when off, protecting against rain and dust for reliable everyday use.
Cost-Effective Solution – Compared to the 1460mm FRP fan, this model is more budget-friendly while still delivering strong airflow, making it ideal for buyers sensitive to cost.
Compact Size – Smaller than the 1380mm Heavy Hammer fan, it is easier to install in medium-sized spaces without requiring as much wall area.
Lower Power Consumption – At just 0.55 kW, it uses significantly less energy than both the 1380mm (1.1–1.5 kW) and 1460mm (0.75–1.1 kW) models, offering the best energy efficiency for medium workloads.
Versatile Applications – The compact structure makes it suitable not only for workshops and farms but also for public places like restaurants, schools, and entertainment venues, where the larger fans may be excessive.
| Model | 1000mm (36") Galvanized | 1380mm (50") Heavy Hammer | 1460mm (50") FRP |
|---|---|---|---|
| Air Volume | 26,000–30,000 m³/h | 44,000 m³/h | 44,000 m³/h |
| Power | ~0.55 kW | 1.1–1.5 kW | 0.75–1.1 kW |
| Frame Material | Galvanized / Stainless steel optional | Galvanized steel | FRP (corrosion-resistant) |
| Shutter Type | Auto louvers | Heavy-hammer shutters | PVC automatic shutters |
| Best Use | Medium workshops, greenhouses, farms, schools, restaurants | Industrial workshops, greenhouses, livestock farms, warehouses | Chemical plants, humid/corrosive environments, poultry farms |
| Strengths | Energy-saving, affordable, compact, versatile | Strong negative pressure, durable, dustproof/waterproof | Corrosion resistance, long service life in harsh environments |
Choose the 1000mm Galvanized Fan if you need an affordable, energy-efficient solution for medium spaces such as electronic workshops, greenhouses, livestock houses, restaurants, or schools. Best for buyers with limited budgets but still requiring reliable ventilation.
Choose the 1380mm Heavy Hammer Fan if your priority is powerful negative pressure ventilation with dustproof and waterproof performance, especially in large factories, textile plants, or agricultural farms.
Choose the 1460mm FRP Fan if you are in a high-humidity or corrosive environment such as chemical plants, electroplating workshops, or breeding farms,
Model NO. | YNH-1000 |
Dimensions | 1000*1000*380/400mm |
Blade Diameter | 900mm |
Motor speed | 1400rpm |
Air volume | 30000m³/h |
Noise decibels | 70dB |
Power | 550W |
Rated voltage | 3-phase 380v (support customization) |
Frequency | 50Hz/60Hz |
Fan Type | Axial Exhaust Fan |
Frame material | Galvanized plate/aluminized zinc plate |
Installation method | wall |
Motor connection method | belt drive，direct drive (optional) |
Application places | agricultural greenhouses, animal husbandry, industrial plants. |
